Ephemeral Ports and Oracle RAC Interconnect

Leave a reply

Building upon my previous post “Ulimit nofiles Unlimited. Why not?“, ensuring that there are enough Ephemeral Ports for Interconnect Traffic is important.  As a matter of fact, it’s part of the prerequisite checks for RAC installation.  But what are they and why are they important? For purposes of this post I won’t deal with excessive interconnect traffic, but instead I will deal with latency caused by the lack of ephemeral ports.

Simply explained, ephemeral ports are the short-lived transport protocol ports for Internet Protocol (IP) communications.  Oracle RAC interconnect traffic specifically utilizes the User Datagram Protocol (UDP) as the port assignment for the client end of a client-server communication to a well-known port list (Oracle suggests a specific port range) on a server.  What that means is, when a client initiates a request it choose a random port from ephemeral port range and it expects the response at that port only.  Since interconnect traffic is usually short lived and frequent, there need to be enough ports available to ensure timely communication.  If there are not enough ports available for the needed interconnect traffic, interconnect latency can occur.

In this case, while performing a healthcheck on a system we immediately noticed an issue with the interconnect manifesting itself in AWR as long ping times between nodes as seen in dba_hist_interconnect_pings:

ping-stats-4hr-before

In my experience, in a system that has the interconnect tuned well and not a ton of cross instance traffic, these should be in the 5ms or less range.

So we started to check all of the usual suspects such as NIC and DNS issues.  One thing we did find was that the private addresses were missing from /etc/hosts so that could contribute some of the latency right?  While adding those helped smooth out the spikes, it didn’t address the entire issue.  So as part of my problem solving process, next I just started poking around with the “netstat” command to see if anything turned up there and most certainly something did:

udpNoPorts-Example-pre

udpNoPorts… What’s that and why is that so high?  That led me to check prerequisites and ultimately ephemeral port ranges.  Sure enough, they were set incorrectly so the the system was waiting on available ports to send interconnect traffic thus causing additional latency.

Oracle specifies the following settings for Solaris 11 and above.  They are set using “ipadm set-prop”:

"tcp_smallest_anon_port"  = 9000
"udp_smallest_anon_port" = 9000
"tcp_largest_anon_port"  = 65500
"udp_largest_anon_port" = 65500



In this case they were set to:


"tcp_smallest_anon_port" = 32768
"udp_smallest_anon_port" = 32768
"tcp_largest_anon_port" = 60000
"udp_largest_anon_port" = 60000



If you were using Linux, the configuration parameter in “sysctl.conf” would be:



net.ipv4.ip_local_port_range = 9000 65500

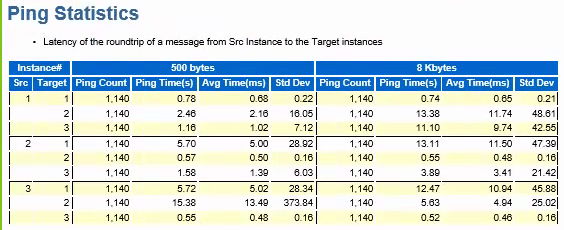

After correcting the settings, we were able to cut the latency in half:


ping-stats-4hr-after


Interconnect post fix


Now, we still have some work to do because the interconnect latency is still higher than desired, but we are now likely dealing with the way the application connects to the database and is not RAC aware vs. an actual hardware or network issue.


Incremental improvement is always welcomed!

Ulimit nofiles Unlimited. Why not?

1 Reply

I was going back through all of my notes of various things I have encountered and I one thing I have been seeing a lot of lately are ulimit settings for various installations not following the recommended defaults.  In just about every case, when I queried the team that either made or requested that setting, the standard answer was “I just didn’t want to have to worry about it, so we set it to unlimited”.  As with anything, there are reasons why certain settings are recommended and this post seeks to show you why as it relates to the ulimit kernel setting of “nofiles”.

For example, in the WebLogic documentation (as of 12.2.1.4), the ulimit requirements specifically state that the “/etc/security/limits.conf” should contain:

* soft nofile 4096
* hard nofile 65536

Interestingly enough, the Oracle database guide (as of 19c) states that the nofile soft limits should be at least 1024 and the hard nofile limits should be “at least” 65536 for both the grid user and oracle user, which is different than WebLogic.  So as you can see, one size doesn’t fit all.

One area where I saw this become important was during the boot sequence of WebLogic Tuxedo. We had an issue where sometimes a server would boot and sometimes it wouldn’t.  At the time the best we could tell was that it depended on how busy the cpu was during boot sequence and that led us to truss the “tmboot” process.  With the help of @AlexFatkulin what we found was very interesting.  We saw this message recurring over and over.

…..
25029:  close(5870682)                                  Err#9 EBADF
25029:  close(5870683)                                  Err#9 EBADF
25029:  close(5870684)                                  Err#9 EBADF
25029:  close(5870685)                                  Err#9 EBADF
25029:  close(5870686)                                  Err#9 EBADF
25029:  close(5870687)                                  Err#9 EBADF
25029:  close(5870688)                                  Err#9 EBADF
…..

This message is related directly to the the closing of “open files”.  But wait a minute, why are there open file descriptors if the application isn’t up? As part of what “tmboot” was doing during start up was trying to close all possible file descriptors regardless if the descriptor was open or not. So if ulimit -n was set to “unlimited” that resulted in 2147483647 possible open file descriptors. The boot code was then in the loop calling close from 1 to 2147483647 which was taking a very long time resulting in practically an infinite loop.  As a corrective action, we set the limit to the recommended defaults and guess what.  The server booted every single time.

It looks like setting ulimit hard “nofiles” to unlimited for WebLogic / Tuxedo exposed some bad coding practices which does not track what file descriptors it opened and instead just tries to close all possible descriptors up to the limit.

Bottom line?  Always start with the System Recommendations and go from there.  Don’t set things to UNLIMITED and think it’s a way to not have to worry about your system.  It could expose the bad coding practices of others.





GoldenGate Auto CDR and Off The Shelf Applications

Leave a reply

Recently, I have been involved in completing a Proof of Concept for adding GoldenGate to an Off the Shelf (OTS) Application to facilitate keeping their DR site in sync.  This post isn’t to discuss the pros or cons of using GoldenGate for this purpose, but rather to share a few items about Auto Conflict Detection and Resolution that will prevent many OTS Applications from using this GoldenGate feature. I have also changed all references to the REAL application to the SAMPLE HR schema to protect the innocent.

This useful feature was first available with Database 12.2 and GoldenGate Version 12.3.  All in all, it is a great feature if you are looking for a database managed Conflict Detection and Resolution Methodology. You can read all about the feature here:
Automatic Conflict Detection and Resolution

One thing I will mention is that while the feature is useful, it does produce a ton of clutter in the schema you choose to deploy this feature in.  As someone who really likes to keep clutter at a minimum, you will notice the following new objects in your schema if the default options are used.  Using simplest form of Auto CDR and the HR.EMPLOYEES table as an example:

  • A new hidden column named CDRTS$ROW TIMESTAMP(6) has been added to the table
  • A new table called a Tombstone table which keeps track of delete rows DT$_EMPLOYEES is created

Now, as of this article, there have been several bugs logged with reguards to the Tombstone table and its functionality so you can choose to not use it by modifying the option TOMBSTONE_DELETES to FALSE upon running the “DBMS_GOLDENGATE_ADM.ADD_AUTO_CDR” for any given table.

It is these invisible and hidden objects which cause issues with OTS products which utilize SQL Frameworks such as:
Hibernate.  It wasn’t until we rebooted the application that we found that it simply would not come up any longer.  In the beginning we got the usual Java error message as long as your arm and we couldn’t tell what was really wrong until we enabled SQL Tracing for the processes at startup.  It was then that TKPROF showed us exactly where the problem query was:

select name,intcol#,segcol#,type#,length,nvl(precision#,0),decode(type#,2,
  nvl(scale,-127/*MAXSB1MINAL*/),178,scale,179,scale,180,scale,181,scale,182,
  scale,183,scale,231,scale,0),null$,fixedstorage,nvl(deflength,0),default$,
  rowid,col#,property, nvl(charsetid,0),nvl(charsetform,0),spare1,spare2,
  nvl(spare3,0), nvl(evaledition#,1),nvl(unusablebefore#,0),
  nvl(unusablebeginning#,0), case when (type# in (1,8,9,96,112)) then
  nvl(collid, 16382) else 0 end case, nvl(collintcol#,0), nvl(acdrrescol#, 0),
  nvl(spare7, 0)
from
col$ where obj#=:1 order by intcol#;

It is this query which the framework uses to build its object-relational mapping. Guess what. It does not filter out INVISIBLE columns as evidenced by the following error message (table / column names changed as appropriate):

ORA-01400: cannot insert NULL into (“HR”.”EMPLOYEES”.”CDRTS$ROW”)

This column is used for conflict detection and maintained by Oracle. Seeing that the application does not know what to do with it, it errors out. Perhaps the a possible remedy to this situation is to propose to the framework author to modify the query which builds the dictionary to include the following additional where clause “and col# 0”. Columns are marked invisible when the col# is 0:

select name,intcol#,segcol#,type#,length,nvl(precision#,0),decode(type#,2,
  nvl(scale,-127/*MAXSB1MINAL*/),178,scale,179,scale,180,scale,181,scale,182,
  scale,183,scale,231,scale,0),null$,fixedstorage,nvl(deflength,0),default$,
  rowid,col#,property, nvl(charsetid,0),nvl(charsetform,0),spare1,spare2,
  nvl(spare3,0), nvl(evaledition#,1),nvl(unusablebefore#,0),
  nvl(unusablebeginning#,0), case when (type# in (1,8,9,96,112)) then
  nvl(collid, 16382) else 0 end case, nvl(collintcol#,0), nvl(acdrrescol#, 0),
  nvl(spare7, 0)
from
col$
where obj#=:1 and col# != 0
order by intcol#;

Once your particular SQL framework is able to properly handle invisible columns you should be able to use this useful feature. Unfortunately for my case, it will be another release or 2 before the framework we are using can handle it.

Oracle 12 Non-CDB to PDB Migration Methods

Leave a reply

Continuing with trying to finish additional blog posts which have been on my list for a while, is a review of the methods of migrating a Non-Container Database (Non-CDB) to a Container Database (CDB) with Pluggables.

I wish this was easier and Oracle gave you a complete “in-place” method to do this, but the only way to get a Non-CDB (pre-12c database) to a CDB is to create a new database and migrate the Non-CDB into the new CDB as a PDB.

I will make the assumption that the creation of the new CDB is complete. So lets look at some methods of creating / migrating the PDB and their pros and cons:

In either case, you need to start with creating the XML file which will describe the new PDB:

On the Non-CDB:

	SHUTDOWN IMMEDIATE;
	startup mount exclusive;
	alter database open read only;

Create the PDB Describe XML File:

     BEGIN
       DBMS_PDB.DESCRIBE(
          pdb_descr_file => '/export/home/oracle/nonCDBToPDB.xml');
     END;
     /
     shutdown immediate;

Verify the XML File on the new CDB:

     SET SERVEROUTPUT ON
     DECLARE
         hold_var boolean;
     begin
          hold_var := DBMS_PDB.CHECK_PLUG_COMPATIBILITY(pdb_descr_file=>'/export/home/oracle/nonCDBToPDB.xml');
     if hold_var then
          dbms_output.put_line('YES');
     else
          dbms_output.put_line('NO');
     end if;
     end;
     /

Check for errors:

   set lines 300
   col cause for a25
   col message for a150
   set pagesize 9999
   select name,cause,action,type,message,status from PDB_PLUG_IN_VIOLATIONS;

Before you can proceed, all errors contained in PDB_PLUG_IN_VIOLATIONS must be resolved. Next are 2 out of the 3 methods to migrate an Non-CDB to PDB. I will leave the “COPY” method out of this post as it is not feasible to move any of the databases I deal with on a day to day basis using ‘COPY’.

Create the PDB using “NOCOPY”. While “NOCOPY” is the fastest, it could be the most problematic long term because this function leaves all datafiles where they came from and since the new CDB is likely to be on the same host, the naming differences could be confusing at some point. Nonetheless, for demonstration, the command is quite easy:

     CREATE PLUGGABLE DATABASE devpdb USING '/export/home/oracle/nonCDBToPDB.xml' NOCOPY TEMPFILE REUSE;

Based on my testing, the method I liked the most was the ‘MOVE’ option. To some, this may seem invasive, but for my environments this was the best option because the new file names are also corrected to contain the correct OMF path names based on the new CDB. While this method wasn’t as fast as NOCOPY, in my 18TB environment with 1200 datafiles, this command finished in just over 30 minutes. Pretty acceptable in my book:

     CREATE PLUGGABLE DATABASE devpdb USING '/export/home/oracle/nonCDBToPDB.xml' MOVE TEMPFILE REUSE;

Finishing off the migration to the new PDB is the same regardless of the migration method:

Verify the PDB:

	select name,guid, open_mode from v$pdbs;
	col pdb_name for a15
	select pdb_name, status from dba_pdbs;

Clean up the PDB. This by far was one of the longest operations of the whole conversion:

	alter session set container=devpdb;
	$ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql

Check for errors:

	set lines 300
	col cause for a25
	col message for a50
	col action for a100
	set pagesize 9999
	select name,cause,action,type,message,status from PDB_PLUG_IN_VIOLATIONS;

In my case, the only remaining violations that I had were some orphan database services that were stuck in the metadata. To clean this up you can execute:

	alter session set container=;

	select SERVICE_ID,NAME,NETWORK_NAME,PDB FROM CDB_SERVICES ORDER BY PDB,SERVICE_ID;
	select SERVICE_ID,NAME,NETWORK_NAME FROM DBA_SERVICES ORDER BY SERVICE_ID;

	exec dbms_service.delete_service('')

Ensure that all pluggables are open and open on restart:

	alter pluggable database all open;
	alter pluggable database all save state;

As with anything in our business, adequate testing goes a long way and these were my observations in my environment. If your experience varies, I sure would like to hear about it.

Adjusting Available CPU Threads in SuperCluster Local Zones Online

Leave a reply

Lately, I have been working on the Oracle SuperCluster platform. After having worked with Linux for the past many years, it was quite refreshing to get back to an OS that so many of us have worked on. As part of our local zone layout, we have a requirement to allocate different amount of M7 CPU Threads per zone. Upon researching the best way to do this, I found varying information, so I thought that I would go ahead and blog about the way that worked best for this situation.

In this case, CPU Thread control was set-up using resource pools. Solaris Resource Pools are described here:

Oracle Solaris Resource Pools

By default, the resource pool does not restrict access or control scheduling. By modifying the resource pool and allocating specific threads to specific zones, you thereby allocate threads to the local zones.

Here’s how:

First, lets display the pool layout. Since we only need to look at allocating threads (the command actually outputs a ton of data), I will limit the output to only what is relevant.

Find the pool configurations you want to effect. Pset pertains directly to cpu threads so that is what we will look for:

#  poolcfg -dc info | egrep 'pset |pset.size|pset.min|pset.max'

        pset pset_[host name]_id_25289
                uint    pset.min 32
                uint    pset.max 32
                uint    pset.size 32
        pset pset_[host name]_id_25223
                uint    pset.min 64
                uint    pset.max 64
                uint    pset.size 64
        pset pset_[host name]_id_25287
                uint    pset.min 64
                uint    pset.max 64
                uint    pset.size 64
        pset pset_[host name]_id_25224
                uint    pset.min 32
                uint    pset.max 32
                uint    pset.size 32
        pset pset_default
                uint    pset.min 1
                uint    pset.max 65536
                uint    pset.size 64

In this case we can see that out of the 256 CPU threads available to this Global Domain, 32 have been allocated to the first local domain, 64 each to the next 2 and then 32 to the last, leaving 64 in the default pool or available to the global domain.

If you would like to see the file which also details the complete rules of the resource pool, you can look here:

/etc/pooladm.conf

To start with any modifications, it is best to ensure that the latest configuration is saved. To do so you can run this command from the global domain:

# pooladm -s

Once this has been done, you can proceed with the reallocation. In this example, I will modify one pool by taking CPU Threads from the default pool.
Using “-d” operates directly on the kernel state, so use this with caution. On a running system, I would reallocate in small chunks. That will give the operating system time to adapt to the different CPU configuration. In this example we will add 8 threads to a local zone which already had 32 Threads:

# poolcfg -dc 'modify pset pset_[host name]_id_25289 ( uint pset.min = 40 ; uint pset.max = 40)'

At this point the change has been made to the configuration file only (/etc/pooladm.conf), not actually to the system. To make the change to the system, save the configuration and commit to the system:

# pooladm -s

# pooladm -c

Once this change is done, we can inspect the configuration by running the same command shown above. Notice the changes below:

#  poolcfg -dc info | egrep 'pset |pset.size|pset.min|pset.max'

        pset pset_[host name]_id_25289
                uint    pset.min 40
                uint    pset.max 40
                uint    pset.size 40
        pset pset_[host name]_id_25223
                uint    pset.min 64
                uint    pset.max 64
                uint    pset.size 64
        pset pset_[host name]_id_25287
                uint    pset.min 64
                uint    pset.max 64
                uint    pset.size 64
        pset pset_[host name]_id_25224
                uint    pset.min 32
                uint    pset.max 32
                uint    pset.size 32
        pset pset_default
                uint    pset.min 1
                uint    pset.max 65536
                uint    pset.size 56

If you need to transfer cpu from one local zone to another, you can do so by executing the following command:

poolcfg -dc 'transfer 8 from pset pset_default to pset_[host name]_id_25289'

Or if you want to assign a specific CPU Thread:

poolcfg -dc 'transfer to pset pset_[host name]_id_25289 ( cpu 5)'

The rest of the steps remain the same. In the next post I will show you how to verify the additional CPU in each local zone.

Improper Use of the Oracle ‘Rownum’ Pseudocolumn

2 Replies

The other day I found myself needing to explain to some developers why their use-case of the Oracle ‘rownum’ pseudocolumn was yielding a result in one database instance, but a completely different result in another.

In this situation, the correct result is the ‘maximum’ value of the column, however this query was also occasionally returning the exact ‘minimum’ value of this column. How could this happen? The answer lies in the using the ‘rownum’ pseudocolumn correctly. Of course there are other (probably better) ways to write this query without the use of ‘rownum’, but I’m not here to debate that right now….

** Note the tables in the query have been changed to protect the innocent.

select column_a from (select column_a,rownum rowid0 from schema.table order by column_a desc ) aa where aa.rowid0 =1;

Oracle documentation states that it depends how Oracle accessed the rows in the query as to which result you will get. For example your results can vary depending on a lot of factors (ie: the order that you inserted the data in the table or if there is an index on the table and how that index is used). For further information you can see the documentation here:

https://docs.oracle.com/cd/B28359_01/server.111/b28286/pseudocolumns009.htm#SQLRF00255

For further explanation, lets explore the explain plans encountered used in each system:

Correct Result:


--------------------------------------------------------------------------------------------------------------
| Id  | Operation                    | Name                          | Rows  | Bytes | Cost (%CPU)| Time     |
--------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT             |                               |       |       |     1 (100)|          |
|*  1 |  VIEW                        |                               |  1257 | 32682 |     1   (0)| 00:00:01 |
|   2 |   COUNT                      |                               |       |       |            |          |
|   3 |    INDEX FULL SCAN DESCENDING| SCHEMA_TABLE_PK               |  1257 |  6285 |     1   (0)| 00:00:01 |
--------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - filter("AA"."ROWID0"=1)


22 rows selected.

Incorrect Result:


---------------------------------------------------------------------------------------------------------
| Id  | Operation               | Name                          | Rows  | Bytes | Cost (%CPU)| Time     |
---------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT        |                               |       |       |     4 (100)|          |
|*  1 |  VIEW                   |                               |  1257 | 32682 |     4  (25)| 00:00:01 |
|   2 |   SORT ORDER BY         |                               |  1257 |  6285 |     4  (25)| 00:00:01 |
|   3 |    COUNT                |                               |       |       |            |          |
|   4 |     INDEX FAST FULL SCAN| SCHEMA_TABLE_PK               |  1257 |  6285 |     3   (0)| 00:00:01 |
---------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - filter("AA"."ROWID0"=1)


24 rows selected.

As you can see, the major difference here is that the two systems have not chosen the same access path in which to return the data. In one system a plan utilized an ‘INDEX FULL SCAN DESCENDING’ access path, while the other utilized an ‘INDEX FAST FULL SCAN’ access path.

Is this really that different? Turns out it is.

ASK Tom Explained the reason why very concisely:
(Ask TOM “Difference between Full Index Scans and Fast Full Index Scans”)

They state that:

“An index fast full scan reads the ENTIRE index, unsorted, as it exists on disk. It is basically using the index as a “skinny” version of the table. The query in question would only be accessing attributes in the index (we are not using the index as a way to get to the table, we are using the index INSTEAD of the table) We use multiblock IO and read all of the leaf, branch and the root block. We ignore the branch and root blocks and just process the (unordered) data on the leaf blocks.

An index full scan is when we read the index a block at a time – from start to finish. We’ll read the root block, navigate down the left hand side of the index (or right if we are doing a descending full scan) and then when we hit the leaf block – we’ll read across the entire bottom of the index – a block at a time – in sorted order. We use single block IO, not multiblock IO for this operation.”

Well there you have it. And this is why the result is different. How can we keep this from occurring in the future? The answer is to utilize the ‘rownum’ pseudocolumn correctly. Remember, rownum is not a real column so in order to get the right results, it needs to be added after the data is in the sorted order that you want. To do that, make sure you write the query so that ‘rownum’ is applied after the sort. Using the same query above, lets ‘rewrite’ it in such a way that it will achieve the desired results:

select column_a from (select column_a,rownum from (select column_a from schema.table order by column_a desc)) where rownum = 1;

See the steps now?

  1. Retrieve data in sorted order
  2. Apply the ‘rownum’ pseudocolumn
  3. Filter for the desired value in the list

If you must use the ‘rownum’ pseudocolumn, writing your query in this manner will ensure that you always get the same result.

Enjoy!

Oracle Native Network Encryption

Leave a reply

With all of the security concerns out there and data being more important than ever, it might be also time to consider encrypting your data connections, even within your own data center. If you are utilizing cloud, there should be no question that some sort of encryption should be used. In terms of what Oracle provides, you have two options, Native Encryption and SSL/TLS encryption. As of the time of this writing, both of these options are free to use and are no longer part of the Advanced Security Option. In this post, I will discuss the set-up and use of Native Encryption, with SSL/TLS to come later.

Native network encryption provided by the Oracle client is by far, the easiest to set up, so in that same context it would also be the easiest to bypass. That said, there are ways to set it up in such a way that those risks can be mitigated. Due to those same risks, Native encryption would be a great solution to use within a private data center, but not in a public or hybrid cloud scenario. SSL/TLS would be an option to pursue in a public or hybrid cloud scenario and I plan to discuss that in a future post.

Set Up:

Setup of Native encryption is pretty straight forward and easy, especially for OCI “Thick” connections and any other method that utilizes the sqlnet.ora file. In cases where that file is not utilized, there is some additional setup and I will discuss that as well.

First, it is important to understand all of the different combinations of parameters which Native encryption uses. Luckily it is only two, however, there are many different combinations and those combinations and their results are better detailed here:

Version 12.x (OCI Thick):
https://docs.oracle.com/database/121/DBSEG/asoconfg.htm#DBSEG020

Version 12.x (JDBC Thin):
https://docs.oracle.com/database/121/DBSEG/asojbdc.htm#DBSEG9609

By default, both sides of any client connection is configured to ‘ACCEPT’ an encrypted connection.  Because of this, you only have to configure one side or the other, but for safety reasons, I would recommend configuration of both sides.

In 11.2, there are a few less options in terms of encryption and checksum algorithms, so for simplicity circumstances, I will just illustrate a 12.x ‘THICK’ client connection to an 11.2.0.4 database.

To enable this option within the ‘THICK’ client:

# sqlnet.ora Network Configuration File: /u01/app/oracle/product/12.2.0/client_1/network/admin/sqlnet.ora
# Generated by Oracle configuration tools.

NAMES.DIRECTORY_PATH= (TNSNAMES, EZCONNECT)

SQLNET.ENCRYPTION_CLIENT = REQUIRED
SQLNET.ENCRYPTION_TYPES_CLIENT = (AES256)

SQLNET.CRYPTO_CHECKSUM_CLIENT = REQUIRED
SQLNET.CRYPTO_CHECKSUM_TYPES_CLIENT = (SHA1)

If you are utilizing JDBC ‘thin’ connections, then you can also set the properties within the java code itself:

prop.setProperty(OracleConnection.CONNECTION_PROPERTY_THIN_NET_ENCRYPTION_LEVEL,level);
prop.setProperty(OracleConnection.CONNECTION_PROPERTY_THIN_NET_ENCRYPTION_TYPES,algorithm);
prop.setProperty(OracleConnection.CONNECTION_PROPERTY_THIN_NET_CHECKSUM_LEVEL,level);
prop.setProperty(OracleConnection.CONNECTION_PROPERTY_THIN_NET_CHECKSUM_TYPES, algorithm);

And edit the sqlnet.ora on the server:

# sqlnet.ora Network Configuration File: /u01/app/11.2.0.4/grid/network/admin/sqlnet.ora
# Generated by Oracle configuration tools.

NAMES.DIRECTORY_PATH= (TNSNAMES, EZCONNECT)

ADR_BASE = /u01/app/oracle

SQLNET.ENCRYPTION_SERVER = REQUIRED
SQLNET.ENCRYPTION_TYPES_SERVER = (AES256)

SQLNET.CRYPTO_CHECKSUM_SERVER = REQUIRED
SQLNET.CRYPTO_CHECKSUM_TYPES_SERVER = (SHA1)

Validation:

There are a few ways to validate that encryption is actually taking place. The easiest is to execute the following SQL upon login to the database:

If no encryption is occurring, then the banner will look like this:

SQL> select network_service_banner from v$session_connect_info
  2  where sid in (select distinct sid from v$mystat);

NETWORK_SERVICE_BANNER
-----------------------
TCP/IP NT Protocol Adapter for Linux: Version 11.2.0.4.0 - Production
Oracle Advanced Security: encryption service for Linux: Version 11.2.0.4.0 - Production
Oracle Advanced Security: crypto-checksumming service for Linux: Version 11.2.0.4.0 - Production

If encryption is happening, then the banner will return additional data:

SQL> select network_service_banner from v$session_connect_info
  2  where sid in (select distinct sid from v$mystat);

NETWORK_SERVICE_BANNER
-----------------------
TCP/IP NT Protocol Adapter for Linux: Version 11.2.0.4.0 - Production
Oracle Advanced Security: encryption service for Linux: Version 11.2.0.4.0 - Production
Oracle Advanced Security: AES256 encryption service adapter for Linux: Version 11.2.0.4.0 - Product
Oracle Advanced Security: crypto-checksumming service for Linux: Version 11.2.0.4.0 - Production
Oracle Advanced Security: SHA1 crypto-checksumming service adapter

Notice the 2 additional lines in the banner when encryption is occurring:
Oracle Advanced Security: AES256 encryption service adapter for Linux: Version 11.2.0.4.0 – Product
Oracle Advanced Security: SHA1 crypto-checksumming service adapter

So the database indicates that encryption is happening, so what is actually happening on the wire? To determine that, we can either use a product like Wireshark or trace the connection to the listener. To do this, enable the following parameters in the SQLNET.ORA on the client:

DIAG_ADR_ENABLED=OFF
TRACE_DIRECTORY_CLIENT=/home/oracle/trace
TRACE_FILE_CLIENT=nettrace
TRACE_LEVEL_CLIENT=16

And in the trace filem you will see an entry similar to the following:

(3310995200) [24-APR-2017 10:19:21:077] na_tns:         Encryption is active, using AES256
(3310995200) [24-APR-2017 10:19:21:077] na_tns:         Crypto-checksumming is active, using SHA1

So as you can see, the setup of Native encryption is quite easy. As with any additional feature, performance could be compromised, so make sure you test all combinations thoroughly in order to determine what works best in your environment. Enjoy!

Extending GoldenGate Change Data Capture With Eventactions

Leave a reply

In the previous post, I discussed a very simple setup of GoldenGate for the purpose of implementing Change Data Capture.  Occasionally, depending on the requirements and the data volume, it may be worthwhile to suspend replication while the application processes data or performs some other work.  One way to do this is with eventactions.  GoldenGate eventactions are a simple way of telling Goldengate to do something if a certain data situation is encountered.  In this example, I am going to data drive my event actions by using a control table with 2 rows:

EVENT_DESC EVENT_TMSTP
SUSPEND REPLICAT 13-DEC-16 11.31.00.881031 AM
RESUME REPLICAT 13-DEC-16 11.48.51.065772 PM

Based on an update to the timestamp in the source system, the downstream replicat will utilize that data to either suspend or resume the replicat.

The only way that this event action can be completely data driven, is to have 2 replicats.  One which processes all of the change data and another which processes the ‘resume’ command once issued.  The second replicat is needed due to the fact that the first replicat cannot process any ‘resume’ commands or apply any data on its own because it is SUSPENDED!

In the replicat parameter which will process the suspend, the parameters may look like the following:

--Standard entries in a replicat parameter file

MAP MYSCHEMA.EVENTS, TARGET MYSCHEMA.EVENTS, &
COLMAP (USEDEFAULTS), &
FILTER (@STREQ (EVENT_DESC, 'SUSPEND REPLICAT' )), &
EVENTACTIONS (IGNORE RECORD, LOG INFO, REPORT, SUSPEND, CP BOTH);

In the replicat that will process the resume, the parameters may look like:

--Standard entries in a replicat parameter file

ALLOWDUPTARGETMAP

MAP MYSCHEMA.EVENTS, TARGET MYSCHEMA.EVENTS, &
COLMAP (USEDEFAULTS), &
HANDLECOLLISIONS;

MAP MYSCHEMA.EVENTS, TARGET MYSCHEMA.EVENTS, &
FILTER (@STREQ (EVENT_DESC, 'RESUME REPLICAT' )), &
EVENTACTIONS (IGNORE RECORD, LOG, REPORT, CP AFTER,&
SHELL ('./dirshell/resume_replicat.sh $1', VAR $1 = 'RCDC1'));

If you need a more robust mechanism wherby you need to check some other condition prior to issuing the suspend, you can also extend the suspend action further by executing a SQL Statement as shown within the replicat.  In this case, we need to make sure that if a suspend was issued, it is not prior to a resume record being issued.  This could be very helpful to safeguard against accidental suspends being processed since it is very possible that the CDC replicat may be processing data which is well behind that of the one that processes the ‘resume’ event.

--Standard entries in a replicat parameter file

MAP MYSCHEMA.EVENTS, TARGET MYSCHEMA.EVENTS, &
COLMAP (USEDEFAULTS), &
FILTER (@STREQ (EVENT_DESC, 'SUSPEND REPLICAT' )), &
SQLEXEC (ID LOOKUP_RESUME_DATE, &
QUERY ' SELECT EVENT_DESC,EVENT_TMSTP, COUNT(*) SUSPEND_OK FROM MYSCHEMA.EVENTS &
WHERE EVENT_DESC = :p_resume_event_desc AND EVENT_TMSTP < :p_suspend_tmstp & AND NOT EXISTS( & SELECT 1 FROM MYSCHEMA.EVENTS & WHERE EVENT_DESC = :p_suspend_event_desc AND EVENT_TMSTP > :p_suspend_tmstp) &
GROUP BY EVENT_DESC, EVENT_TMSTP ', &
PARAMS (p_resume_event_desc = 'RESUME REPLICAT', p_suspend_event_desc = 'SUSPEND REPLICAT', p_suspend_tmstp = EVENT_TMSTP), &
TRACE ALL, &
BEFOREFILTER), &
FILTER (@STREQ (LOOKUP_RESUME_DATE.SUSPEND_OK, 1 )), &
EVENTACTIONS (IGNORE, LOG, REPORT, SUSPEND, CP BOTH);

As you can see, event actions are very powerful and can be extended in a variety of ways.  This is just one example.  If you choose to implement this, make sure you also account for the event action in any monitoring scripts you have because GoldenGate will show lag while the suspend action is valid.  Have fun!

Local Listener vs. Remote Listener vs. Listener Networks

1 Reply

Introduction:

Often, when it comes to the database, you may see separate networks configured for the following types of traffic:

  • Backups
  • Management
  • Client

Recently, one of the configurations that I was a part of took it a step further than that and had a few additional networks configured:

  • Data Guard
  • Private Non-Routed Network

One additional requirement was that a scan listener be present for each one of these networks. I wasn’t given the opportunity to set this up either so we had to trust that the other entity set all of the correct parameters.  No big deal right?



The Problem:

Once all of the networks were configured and scan listeners were in place for each network, connectivity on each network was very erratic.  Clients would connect at times and at other times they would not.

It wasn’t until we used a  packet analyzer (Wireshark), that we really saw what was going on.  Upon investigation, a colleague found that occasionally the scan listener would return the wrong VIP to the connecting client.  Good news was that it was the SAME wrong VIP each time.  But why was it doing this?  The culprit ended up being incorrect / missing entries in the following parameters.

  • REMOTE_LISTENER
  • LOCAL_LISTENER
  • LISTENER_NETWORKS

The Oracle documentation on this was not a ton of help either.

The Solution:

Upon investigation, we found that an entry for each local listener was present in the LOCAL_LISTENER parameter and each SCAN_LISTENER was present in the REMOTE_LISTENER parameter and LISTENER_NETWORKS parameter was blank.  As it turns out, LOCAL_LISTENER and REMOTE_LISTENER should contain entries for those listeners present on the first network ONLY.

Incorrect Parameters:

local_listener='(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=client-vip.example.com)(PORT=1534))(ADDRESS=(PROTOCOL=TCP)(HOST=vlan-vip.example.com)(PORT=1534)))'
remote_listener='client-scan:1534','vlan-scan:1534'
listener_networks=''

The LISTENER_NETWORKS parameter is responsible for registration of listeners for ALL other networks.

Correct Parameters:

local_listener='(ADDRESS=(PROTOCOL=TCP)(HOST=client-vip.example.com)(PORT=1534))'
remote_listener='client-scan:1534'
listener_networks='((NAME=netVLAN)(LOCAL_LISTENER=(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=vlan-vip.example.com)(PORT=1534))))(REMOTE_LISTENER=vlan-scan:1534))'

Once these changes were made, the intermittent connection issues were gone and Wireshark confirmed that the listeners were returning the correct VIP for the network being requested.

Beware the Orphan Streams Capture Effect on Archivelogs

Leave a reply

Recently, I ran into an issue where the Oracle Backup and Recovery Manager (RMAN) would not delete old database archivelogs.  I have had this happen before when there as a lag condition with either data guard or GoldenGate extract process.  Upon further investigation, I found that RMAN was issuing the following error.  It looked just like the other times I have encountered this issue:

RMAN-08137: WARNING: archived log not deleted, needed for standby or upstream capture process
archived log file name=+RECOC1/……

This error repeated many times, representing a ton of space being consumed in the DB_FILE_RECOVERY_DEST.  In order to begin diagnosis of the problem (which also happens to be a data guard environment), I went through the normal motions of ensuring proper application of logs to the physical standby environments:

/* On Primary */
SELECT * FROM v$dataguard_stats;

/* To determine which logs are not shipped and applied yet */&lt;/p&gt;
&lt;p style=&quot;padding-left: 30px;&quot;&gt;SELECT *
FROM v$archived_log
WHERE DEST_ID &amp;lt;&amp;gt; 1
AND APPLIED = 'NO'
ORDER BY completion_time;

/* Run on both source and standby to compare the last logs that were applied */&lt;/p&gt;
&lt;p style=&quot;padding-left: 30px;&quot;&gt;SELECT THREAD#, MAX(SEQUENCE#) AS &quot;LAST_APPLIED_LOG&quot;
FROM V$LOG_HISTORY
GROUP BY THREAD#;

/* On Primary */
SELECT *
FROM
(SELECT *
FROM DBA_HIST_SYSMETRIC_HISTORY
WHERE metric_name='Redo Generated Per Sec'
ORDER BY snap_id DESC
)
WHERE rownum&amp;lt;=10;

/* On Primary */
SELECT current_scn FROM v$database;

/* On Standby */
SELECT current_scn FROM v$database;

/* On Primary - To determine actual time difference */
SELECT SCN_TO_TIMESTAMP([SCN of PRIMARY), SCN_TO_TIMESTAMP(SCN of SECONDARY) FROM dual;

After looking at data guard performance, it was clear that data guard itself was not holding RMAN from removing the archivelogs.  In addition to data guard being present, this system is in the process of being migrated from an older system via GoldenGate.  I have seen GoldenGate cause this issue before when an extract was registered with “log retention”, but this is the target system so this isn’t possible, RIGHT?  Just to be sure, I ran a query to see if there were any items which caused the database to think there was a GoldenGate object registered with the system:

/* On Primary - Where archivelogs are being held */
SELECT CAPTURE_NAME, START_TIME FROM dba_capture;



CAPTURE_NAME
---------------------
OGG2$_EECCP2_12C415F04

START_TIME
-------------------------------------------
02-NOV-15 06.47.41.000000000 AM

STATUS
----------
DISABLED

Hey, wait a minute, we do not have an GoldenGate extract or any other registered GoldenGate objects running on this database so why is this entry here?  I then ran the same query as above on my source server and there it is.  The same object on the source.

So how did this happen?

It all points back to the initial data pump that we used to instantiate the database before turning on GoldenGate.  We used a ‘FULL’ data pump export which was taken AFTER the extract was started on the source.  Because of this the export also contained the capture objects necessary to register the extract with ‘LOGRETENTION’.

Solution….

In order to remedy this situation we need to completely remove this ‘orphaned’ capture object from the database.  To do this we need to use the dbms_streams_adm package.  Utilize all of the package defaults, so that you will raise an error should you try to delete the incorrect queue:


exec DBMS_STREAMS_ADM.REMOVE_QUEUE([CAPTURE_NAME])

You should now re-execute the query against dba_capture and the queue just deleted, should no longer be there:


/* On Primary - Where archivelogs are being held */
SELECT CAPTURE_NAME, START_TIME FROM dba_capture;

no rows selected

From this point on, your archivelogs should not be required for any “standby or upstream capture process” and RMAN should now delete your backed up archivelogs providing free space in your DB_FILE_RECOVERY_DEST!
